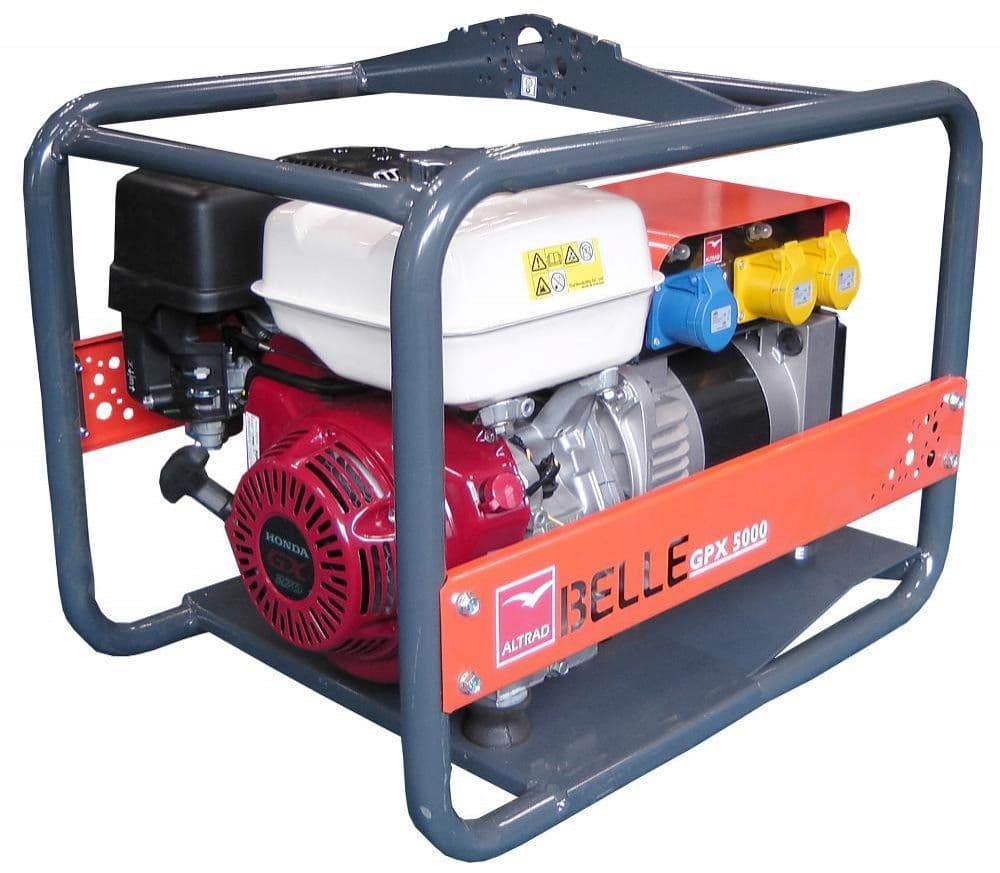

5kva / 4kw Stackable Generator - Belle GPX5000

Introducing the Belle GPX5000, a robust 5kVA / 4kW (3.6kW continuous) generator engineered to excel in commercial and rental environments. Powered by a reliable Honda GX270 petrol engine, this stackable powerhouse ensures uninterrupted power supply wherever it's needed.

Equipped with 2 x 110V 16A, 1 x 240V 16A, and 1 x 110V 32A sockets, the GPX5000 offers versatile connectivity for various equipment. Its sturdy frame safeguards the engine and alternator from physical harm, while full overload protection ensures operational safety.

Key Features:

• Honda GX270 petrol engine with recoil start and low engine oil cut-off.
• Heavy-duty NSM alternator for high-quality power output.
• Stackable frame design with single-point lifting, reducing environmental impact and manual handling risks.
• Engine/alternator side impact protection for added durability.
• Durable screw-in sockets and metal-covered fuse box for longevity.
• Rental-proof steel electrical enclosure and system breakers for 110V & 230V supplies.
• Selectable 110V (16A and 32A) or 230V configurations.
• Designed specifically for hire and rental markets with accessible service points.

Specifications:

• Fuel Capacity: 5.6L
• Engine Power @ 3000rpm: 6.2hp / 4.6kW
• PRP Rating: 4.0kW
• COP Rating (Continuous): 3.6kW
• Number of Sockets: 110V 16A x 2, 110V 32A, 230V 16A x 1
• Frequency: 50Hz
• Alternator: NSM K100 Range
• Maximum Current @ 110V: 36.4A
• Maximum Current @ 230V: 17.4A
• Running Hours @ 90% of COP: 2.8hrs
• Sound Power Level LWA: 96
• Dimensions (W x H x L): 512mm x 595mm x 728mm
• Weight: 67kg

The Belle GPX5000 stands as a reliable and efficient power solution, ready to meet the demands of any job site or rental fleet.
