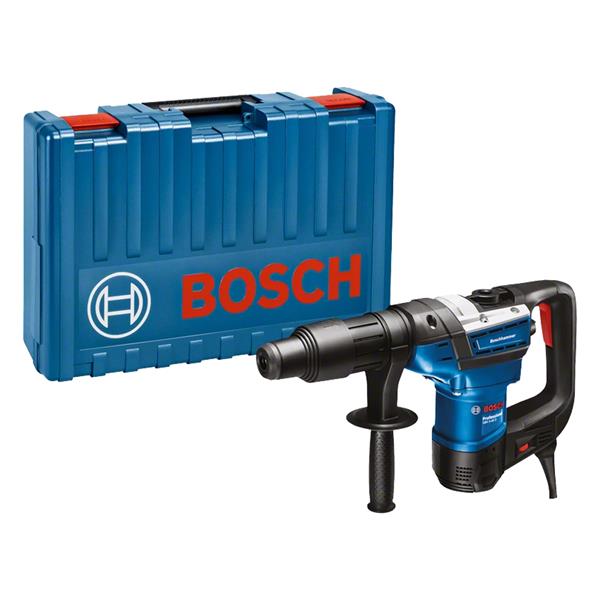

Bosch GBH 5-40 D (110V) SDS Max & Carry Case

The Bosch GBH 5-40 D is an entry-level SDS max rotary hammer built for precision and durability. Its lightweight, compact frame excels in confined spaces, while robust metal construction and optimised lubrication ensure long service life. Delivering 8.5 J of impact energy, it achieves rapid drilling progress and high material removal rates across demanding applications. Includes carry case for site portability and protection.

Includes:

• Auxiliary Handle
• Machine Cloth
• Grease Tube
• Carrying Case

Specification

• Voltage: 110 volt
• Power Input: 1150 watt
• Maximum Impact Energy: 8.8 Joule
• Impact Rate (at Rated Speed): 1500–3050 Bpm
• No-Load Speed: 170–340 Rpm
• Tool Holder: SDS-Max
• Drilling Diameter in Concrete With Hammer Drill Bits: 12–40 Mm
• Optimum Range of Applications in Concrete With Hammer Drill Bits: 18–32 Mm
• Drilling Diameter in Concrete With Breakthrough Drill Bits: 45 – 55 Mm
• Drilling Diameter in Concrete With Core Cutters: 40–90 Mm
• Vibration (Chiselling): 7.5 m/s²
• Vibration Uncertainty K (Chiselling): 1.5 m/s²
• Vibration (Hammer Drilling into Concrete): 10.5 m/s²
• Vibration Uncertainty K (Hammer Drilling into Concrete): 1.5 m/s²
• Length: 485 mm
• Height: 260 mm
• Weight: 6.8 kg
• 110v -Bosch Model 0611264060
