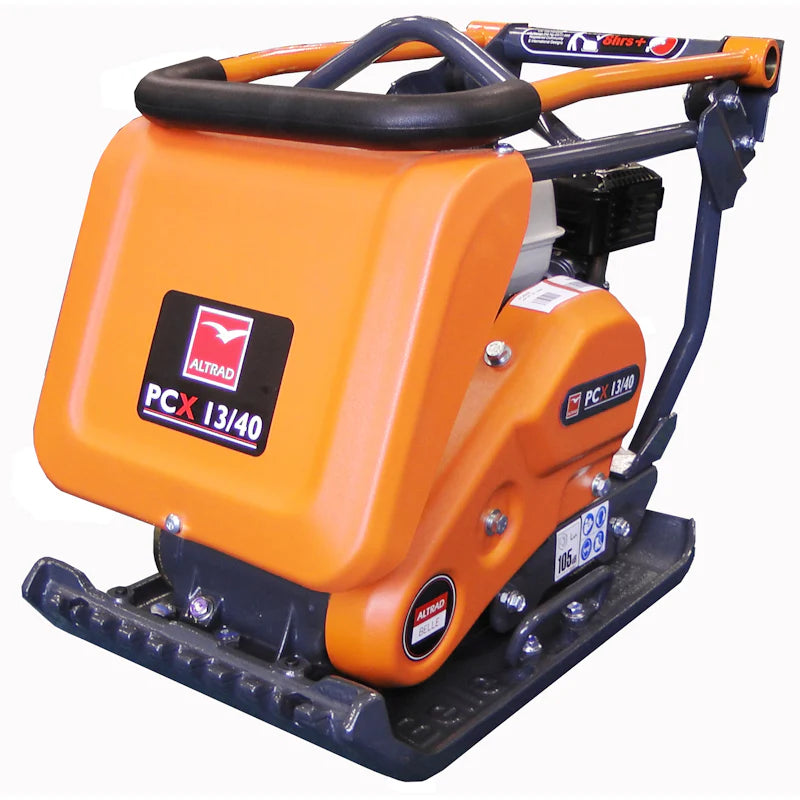

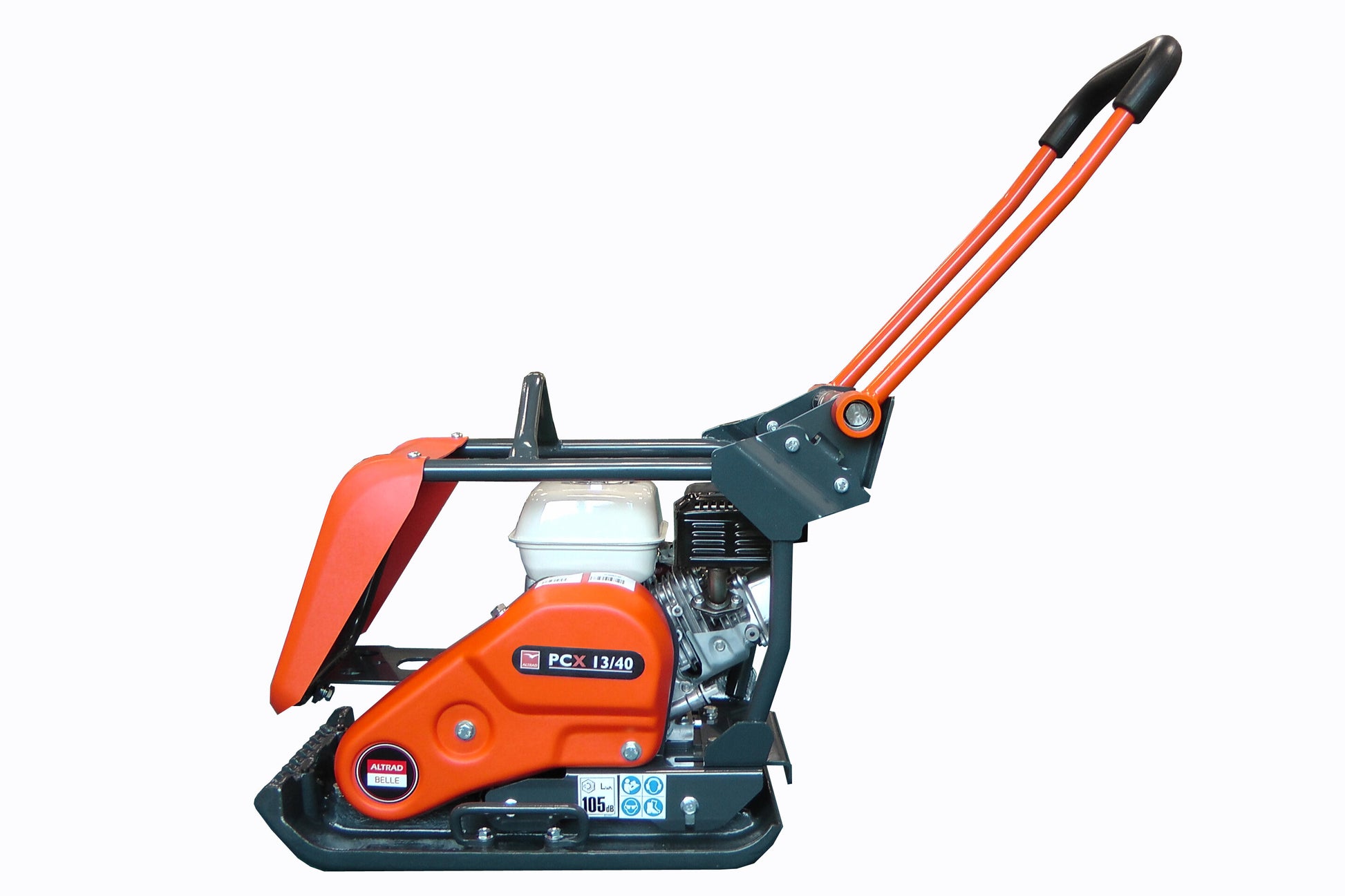

PCX13/40 5.5H 16" Plate Compactor - Altrad Belle



This durable, premium compactor is designed with reduced HAV and improved performance for a variety of tasks. Its shorter baseplate improves compaction and manoeuvrability, while its foldable mounted guide handle allows for superior control and can be lowered to navigate obstacles and tight spaces. A reinforced centrifugal clutch ensures a longer belt life and simplified adjustment, with the added convenience of lifting points and a front lift cage for easy loading and unloading. The compactor also features a large capacity water tank, angled spray bar holes for complete water coverage, and fully protected vibration bearings for a smooth operation that prevents asphalt pick-up on the plate bottom. Elevate your compaction capabilities with this elegant and efficient machine.



Engine	5.5HP HONDA PETROL GX160
Height	85,5 kg
Weight	85.8 kg
Noise Level	105 dB(A)
Centrifugal Force	13 kN
Static Pressure	518 kg/m2
Engine Power	5.5 / 4(Hp / kW)
Vibration level	3,20/4,53 m/sec2
Plate size LxW	606 x 400 mm
