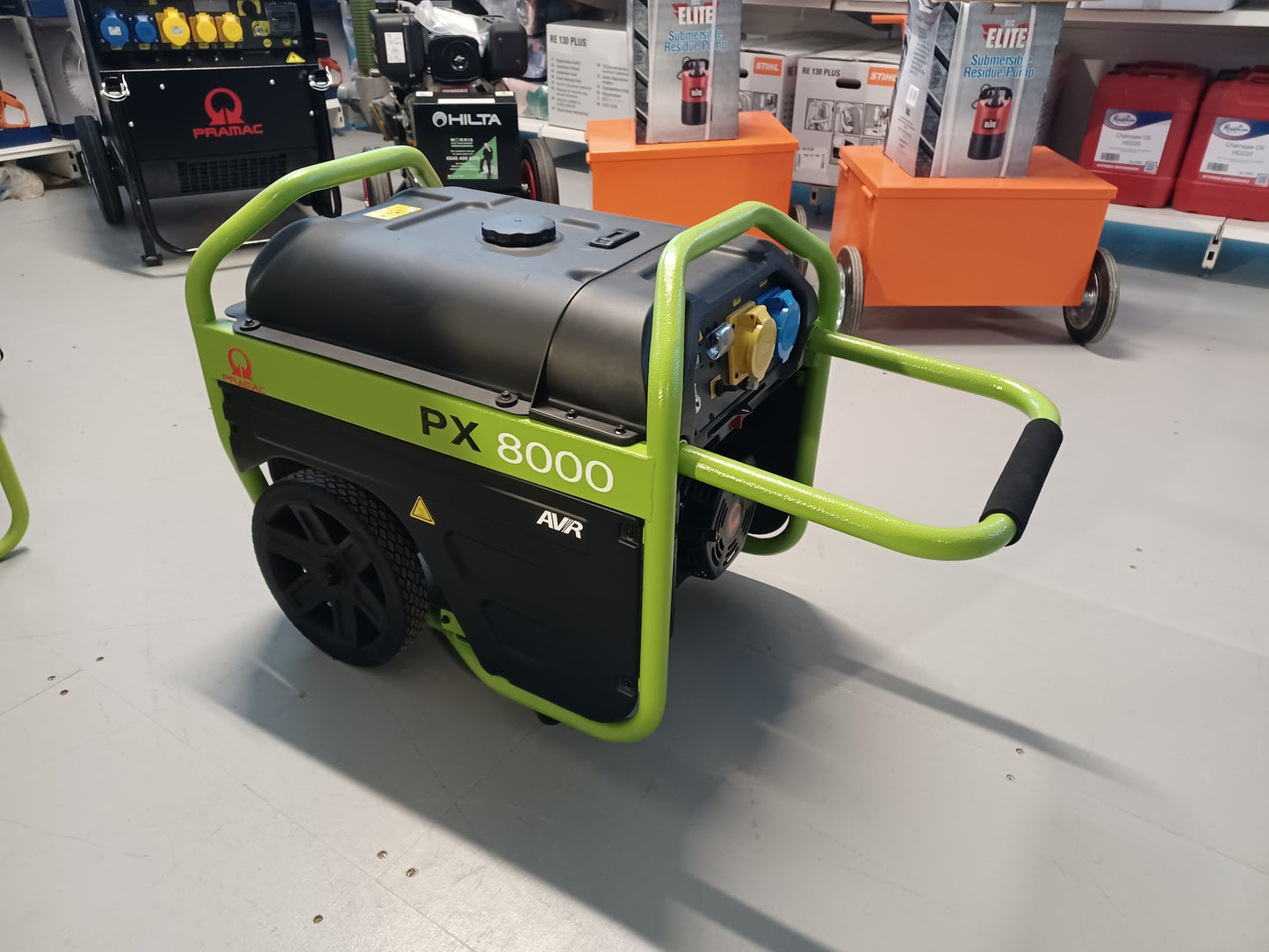

Pramac PX8000 - 6 KVA / 5.4 KW Home Back-Up Generator

The Pramac PX8000 is mobile and is built with a robust yet compact frame, electric key start along with an integrated handle and wheels that make it easy to transport. Great for everyday construction, DIY and powerful enough to use as a home backup supply.

Main features

• Frequency - 50 Hz
• Voltage - 230/115v
• Power factor - .9
• AVR (Automatic Voltage Regulator)

Power rating

• Standby power - 6 kVA
• Standby power - 5.4 kW
• Continuous power - 5 kVA
• Continuous power - 4.5 kW

Engine specification

• Pramac - AP190F
• Engine cooling - Air-cooled
• Displacement - 420cc
• Asperation - Natural
• Operating speed - 3000 rpm
• Speed governor - Mechanical
• Fuel - Petrol
• Oil capacity - 1.1 litre
• Starting - Electric/Recoil

Alternator specification

• Class - F
• IP rating- 22/44
• Poles - 2
• Frequency - 50Hz
• Volage regulation - Electronic

Dimensional data

• Size - 727 x 515 x 670 LxWxH mm
• Dry weight - 64 kg
• Fuel capacity - 18.5 litres

Autonomy

• Fuel consumption @ 75% - 2 L/ph
• Fuel consumption @ 100% - 2.6 L/ph
• Run time @ 75% - 13.5 hrs
• Rim tim @ 100% - 10.15 hrs

Noise level

• Noise level (LWA) - 97 dB(a)
• Noise pressure @ 7m - 69dB(A)

Sockets

• 1 x 230v 32 amp
• 1x 115v 32 amp
